Getting Started

​

Introduction

Chalk’s platform is a powerful tool that allows data engineers and data scientists to collaborate efficiently and effectively.

In this project we’ll create features related to Usersand their credit scores. We’ll combine data from an API and a database to help us decide whether we should issue new loans.

You will learn how to create a new Chalk project, create features and resolvers, deploy them to the Chalk environment, and query the environment using the Chalk CLI and a Jupyter Notebook.

This tutorial will take about 45 minutes to complete end-to-end.

​

Installing the Required Software

1. If you don’t have a favorite IDE, install VS Code by visiting the download site and running the appropriate installer.
2. You’ll also want to install the code CLI command.
3. If you haven’t already, install Python. You can do this through Homebrew as follows:

# Install Homebrew
$ /bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"
# Use Homebrew to install python3
$ brew install python

If you’re having trouble installing Python, follow the instructions in Python’s docs.

4. Install the Chalk CLI by running

$ curl -s -L https://api.chalk.ai/install.sh | sh

​

Creating your Chalk project

Now that all of your software is installed, let’s create a Chalk project where you will add your features and resolvers.

1. Create a folder and call it chalk-tutorial.
2. Run chalk init from inside the chalk-tutorial to initialize your project files. This will create two files for you: chalk.yaml and .chalkignore. The first file, chalk.yaml, contains configuration information about your project. The second file, .chalkignore, tells your Chalk CLI tool which files to ignore when deploying to your Chalk environment. You can edit this file and use it just like a .gitignore file.

$ mkdir chalk-tutorial
$ cd chalk-tutorial
$ chalk init
Created project config file chalk.yaml
Created .chalkignore file

3. Now edit the chalk.yaml file and set the project field to the name of your Chalk project. This might be chalk-tutorial, but check by visiting the Projects page.
4. Login by typing chalk login. If you’re using a dedicated environment, make sure you use the --api-host flag. Type y when prompted and login in the browser.

Now you’re ready to deploy code and query the environment!

​

Create a virtual environment

We’re going to create a virtual environment so that you can download and use Python libraries in your Chalk project.

1. Run the following command from inside your Chalk project to create and activate your virtual environment. When you want to deactivate your virtual environment, type deactivate.

$ python3 -m venv chalk-tutorial-venv
$ source chalk-tutorial-venv/bin/activate

2. Your requirements.txt file tells your virtual environment (and Chalk) which libraries to install. We’ll use a few libraries for this tutorial, so add the following to the requirements.txt. Feel free to add more libraries later.

chalkpy
pydantic
requests

3. Install the requirements.

$ pip3 install -r requirements.txt

4. Check that the libraries are installed by importing requests in Python. If there’s no error message, it worked. Exit by typing exit() and hitting enter.

$ python3
>>> import requests
>>> exit()

​

Use Curl and Jupyter to call APIs.

Now that all the software is installed and ready to use, you’re ready to start integrating an API.

1. First, lets test the API we’re going to use. Run this command to hit the API from your command line. Here we’re asking “give me the credit score for user 12” and the API gives us back a JSON object with a credit score.

$ curl https://credit-report.chalk.dev/rutter_score/12
{"score":98}

Now you should try to hit this API from Python using a Jupyter Notebook.

2. Open VS Code, and create a new file File -> New File. Select Jupyter Notebook.

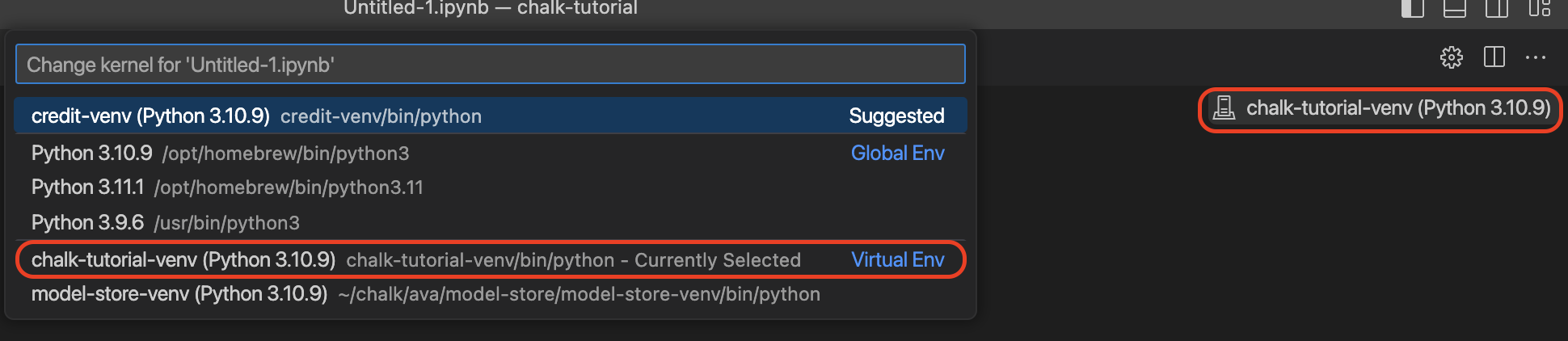

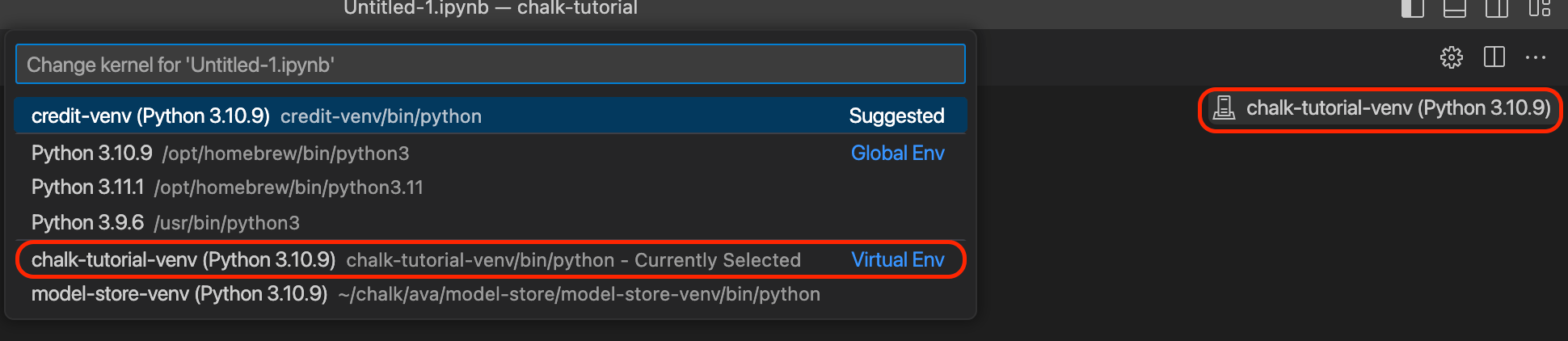

3. Jupyter will probably ask you which interpreter to use. If it does, select the virtual environment you created before (chalk-tutorial-venv).
4. If not, you can select it manually.
5. Finally, let’s query the API from Jupyter. Enter the following code and run it with shift+enter.

import requests
requests.get(
    "https://credit-report.chalk.dev/rutter_score/12"
).json()["score"]

If you see 98, congratulations! You’re all setup and ready to start developing your Chalk project.

​

Building a Chalk project

With all the pre-requisites completed, let’s jump right into building your Chalk project.

​

Creating your first Chalk feature

We’ll create a feature called User with a “Rutter score” property. The resolver will call the “Rutter” API we tested earlier, passing the User ID, and return the score. After you deploy the feature, you will test it in Jupyter.

1. Create a credit.py file and copy in the feature and resolver definitions below:

import requests
from chalk.features import online, features, Features

@features
class User:
    id: str
    credit_score: int

@online
def get_credit_score(
    id: User.id,
) -> Features[User.credit_score]:
    return requests.get(
        f"https://credit-report.chalk.dev/rutter_score/{id}"
    ).json()["score"]

2. Deploy your code. Pass the --branch flag with a name so that you don’t affect the “actual” environment

chalk apply --branch test

3. Now lets query for your feature from your Jupyter Notebook. Enter and execute the following code in your notebook.

from credit import User
from chalk.client import ChalkClient
ChalkClient().query(
   input={User.id: 'u_F6zY0tE4w8'},
   output=[User.credit_score],
   branch="test"
)

You can also query for this feature in your terminal:

$ chalk query --in user.id=u_F6zY0tE4w8 \
              --out user.credit_score \
              --branch test

Congratulations! You’ve written your first Chalk feature, connected it to an external API, and queried it from a Jupyter Notebook. This is a big achievement!

​

Adding a database to Chalk

We have a database containing more information about users, and it would be good to combine that information together on our user feature.

1. If you have psql or similar tool installed, you can preview the database from the command line. When prompted, the password is postgres.

psql -U postgres -p 5432 -h 35.188.7.252 -d postgres
postgres=> select * from users limit 10;

Notice that we know name, surname, email, birthday, and is_fraud, a flag that tells us whether we know this user has committed fraud in the past.

2. To use this in your Chalk project, we’ll add the database through the UI. Navigate to your environment, and find “Data Sources” on the left hand navigation.
3. If you see the database already, great, you can skip the next step of adding the database. Otherwise, continue.
4. Click Add a Data Source and choose PostgreSQL.

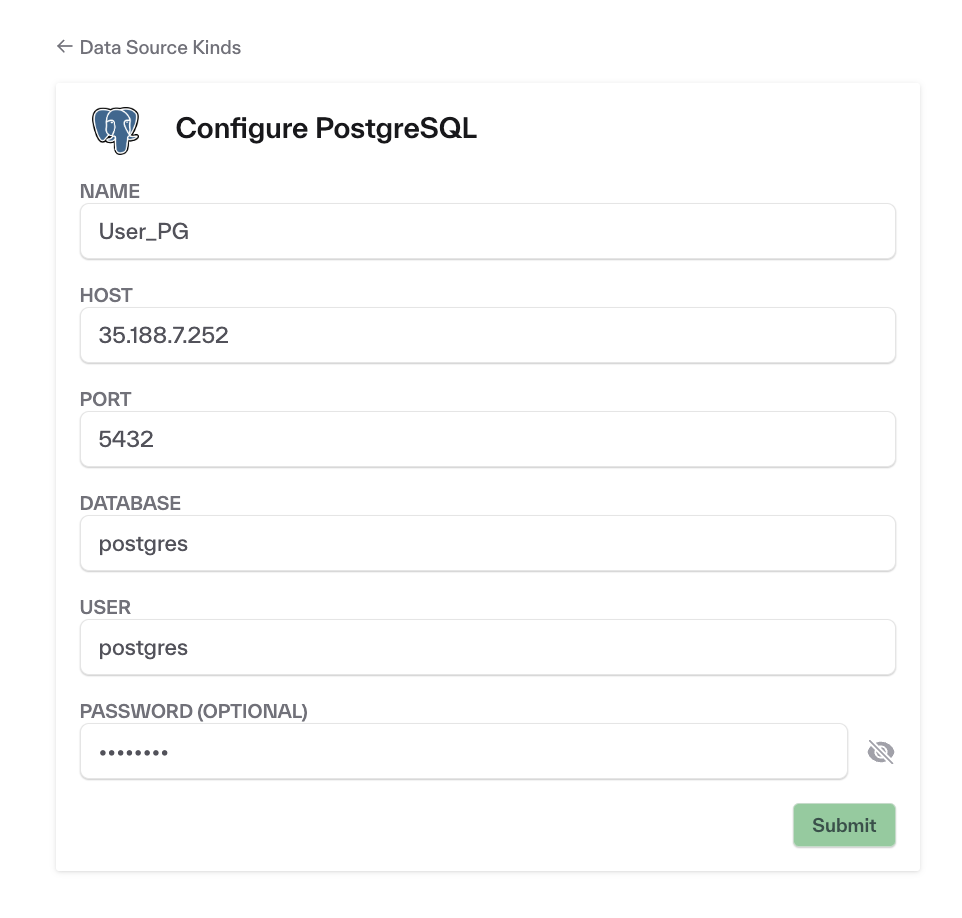

5. Fill out the fields as shown here. The password is postgres.

​

Write a resolver that resolves a database

1. Add the fields from the database to the User feature class you created before. The properties name, surname, and email are strings. Birthday is a date, and is_fraud is a boolean. (Hint: you may have to add from datetime import date to your credit.py file)
2. Add the datasource to your Python context. Add the below code to your credit.py file. This tells Python about your datasource.

from chalk.sql import PostgreSQLSource
user_pg = PostgreSQLSource(name="User_PG")

3. You can use a SQL File Resolver to pull this information. Create a new file called users.chalk.sql and copy the below contents:

-- type: online
-- resolves: user
-- source: postgres
-- count: 1
select name, surname, email, birthday, is_fraud from users where id=${user.id}

4. After deploying (remember to use --branch with the name you specified, for example “test”), query your feature. Supplying User as the output tells Chalk to give you back ALL the features of User.

res = client.query(
    input={User.id: 'u_F6zY0tE4w8'},
    output=[User],
    branch="test"
)

You can also query for this feature in your terminal:

$ chalk query --in user.id=u_F6zY0tE4w8 \
              --out user \
              --deployment test
